Night Track

With NITE TRACK on board your boat or vehicle, you’ll have a crystal-clear view of what lies ahead, even in near-perfect darkness. NITE TRACK uses charge-coupled device (CDD) technology to provide a night-vision system that lets you see objects — and even word — clearly in the dark.

Way more cost effective than X-Band Radar.

Total day time vision at night and beats the military versions.

1. Spotting oil spills at night.

2. Search and Rescue.

3. Anti Terrorist insurgency.

4. Asset protection.

5. Land and Sea operations.

6. Fishing.

7. Sailing.

8. Game Watching.

9. Coast Guard.

10. Anti-Poaching.

11. Military / Civilian run dark / drive your vehicle or boat / vessel in total darkness and only you can see.

12. Anti-Theft.

13. Hand and fixed units available.

14. Any night time activities.

Night Track

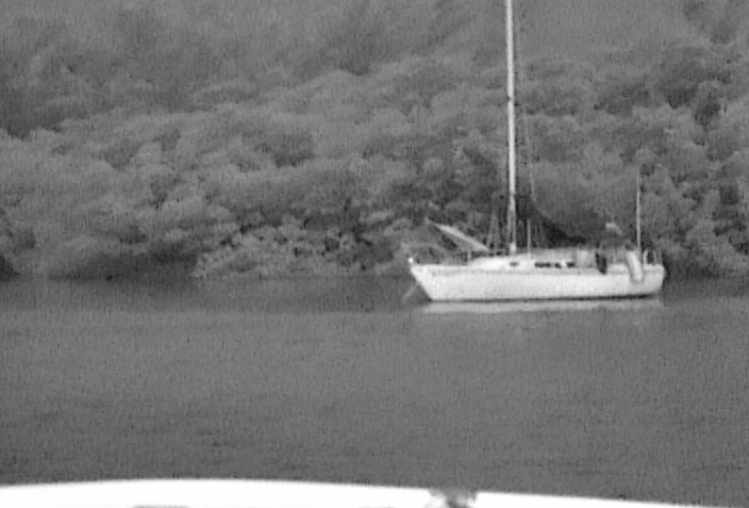

NITE TRACK Marine is a fixed mount system. It’s gives you a hands-free, real-time video feed with near perfect depth of field, which means you’ll have greater situational awareness

Having NITE track on your boat means you never have to race the sunset home. You can stay out as late as you like, knowing that you’ll be able to come in safely, no matter how dark it gets.

fEATURES

• Affordable: NITE TRACK costs less than 3rdgeneration hand-held night vision devices and much less than remotely mounted thermal imagers.

• Hands-free operation

• High Resolution: See more than just silhouettes. Nite Track™ reveals the details in your surroundings.

• No image wash-out

• Better full-time situational awareness compared to hand-held devices.

• Better safety

• Available in 2 color options, white or black.

whats in the box

Nite Track Marine is shipped in a crush proof mailer that contains the following;

• Nite Track Marine Sensor w/RAM mount attached.

• 25 Foot cable with termination leads and an attached video output cable.

• Connection Diagram

• Warranty

• ENSOR

  Type:CCD

  Peak Spectral Response:Approx. 650 nanometers (nm)

  Minimum Illumination:.00005 Lux

  Pixels:752 (V) x 582 (H)

  Field of View:14°

  Interchangeable Lenses:Yes, C or CS mount

  Iris:Manual

  SYSTEM

  Power:12v DC @ 200 milli-amps

  Housing:Anodized Aluminum/powder coated. Available in white or black.

  Weight:28oz.

  Sensor Dimensions:8”L x 2”H X 3.5”W

  Operating Temp:10° F to 120° F

  Cable Length:20’, Custom lengths available

  Cable Jacket:TPE/Rubber, Shielded video
